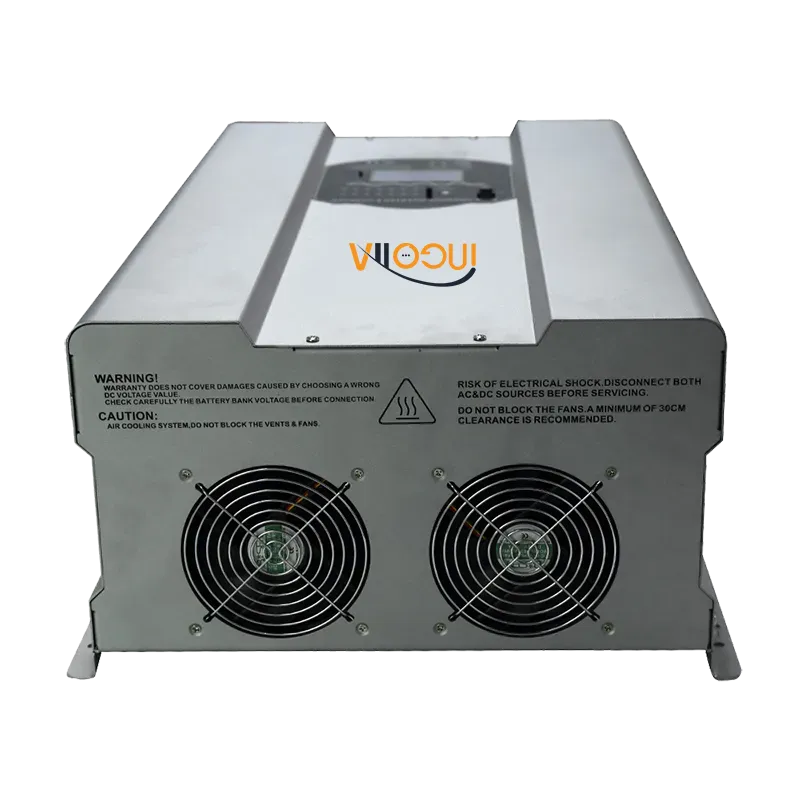

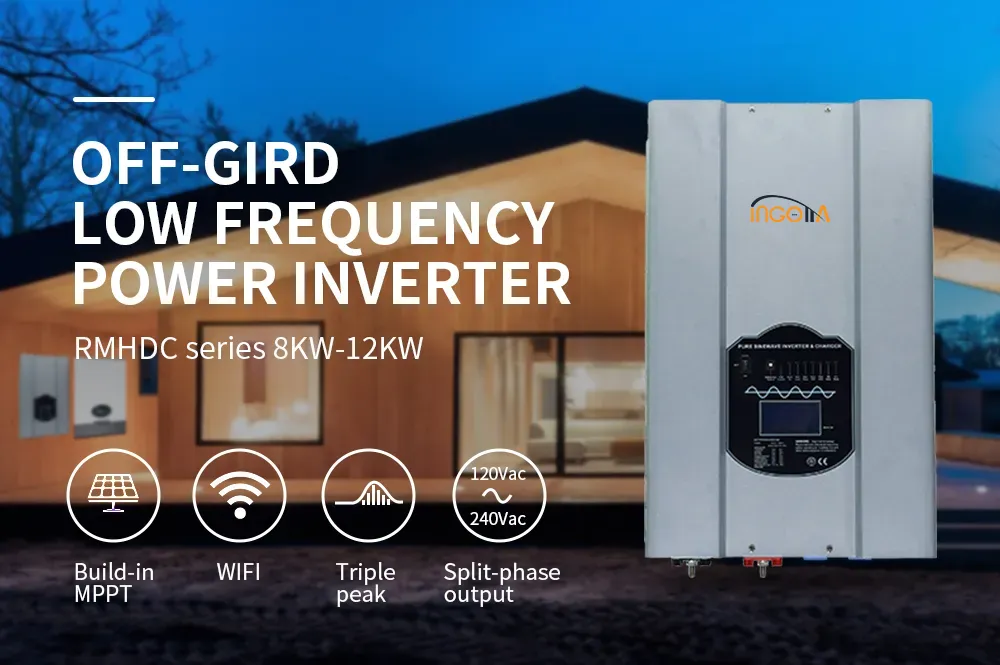

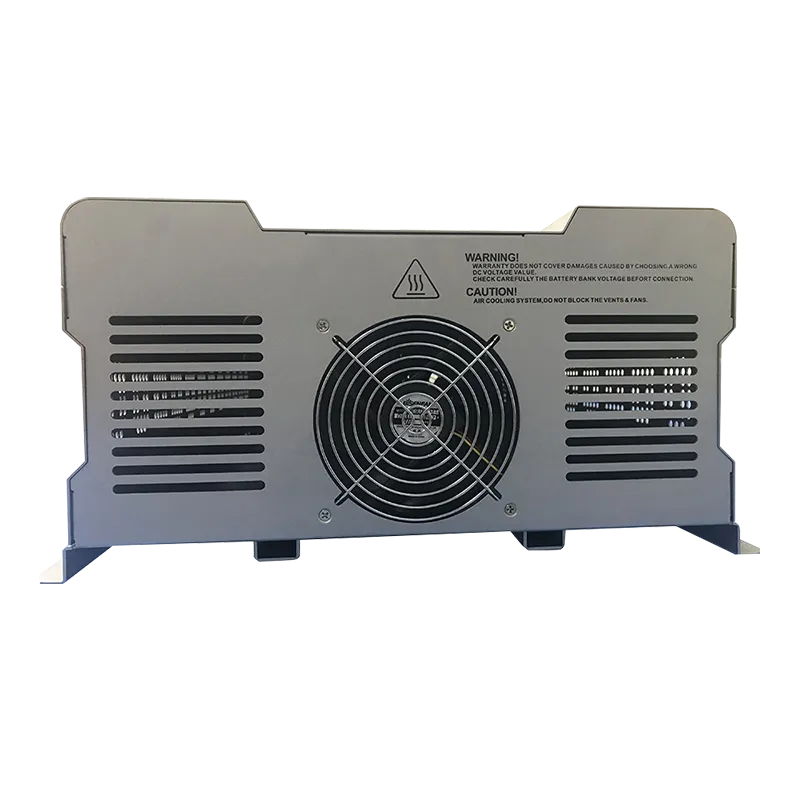

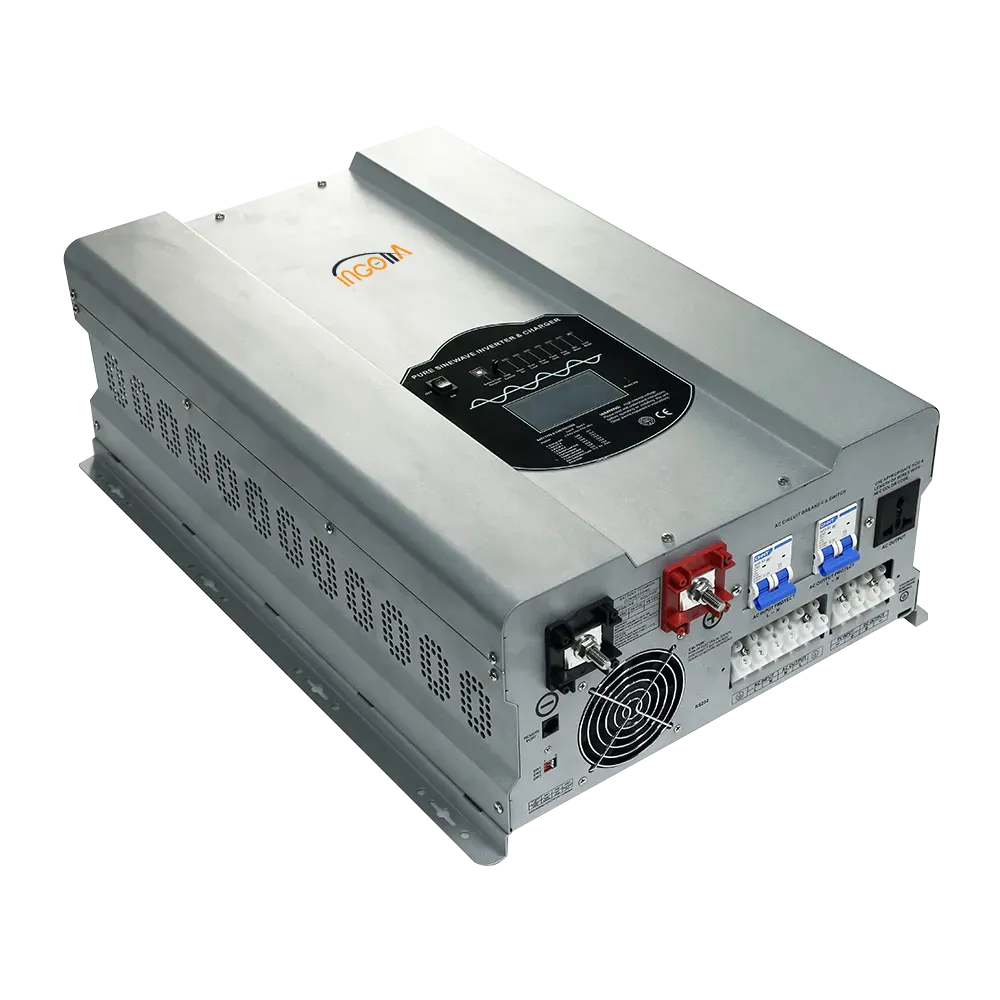

8kw 10kw 12kw IMHGC series Low frequency solar inverter with mppt
IMHGC series
Power frequency inverter control integrated machine, built-in MPPT controller, 3 times the maximum peak power, optional single-phase 120V or 220V output, can choose split-phase 120V and 220V output. Ideal for home use on two circuits for power tools, computers, audio/video components, and other sensitive electronic equipment. This inverter has a hard shell and is not limited to home, commercial, industrial, marine and other scenarios.
- Sine wave output

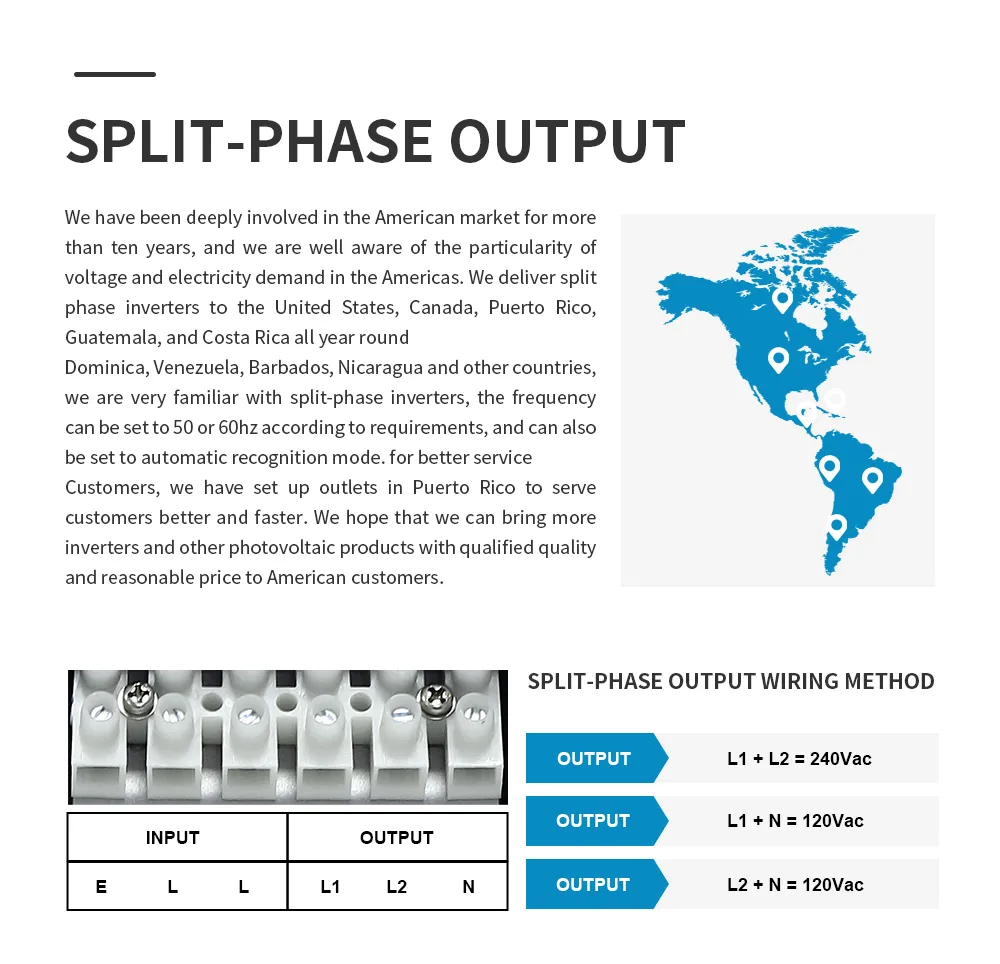

- Split-phase output 120V/240V (optional)
- real power output

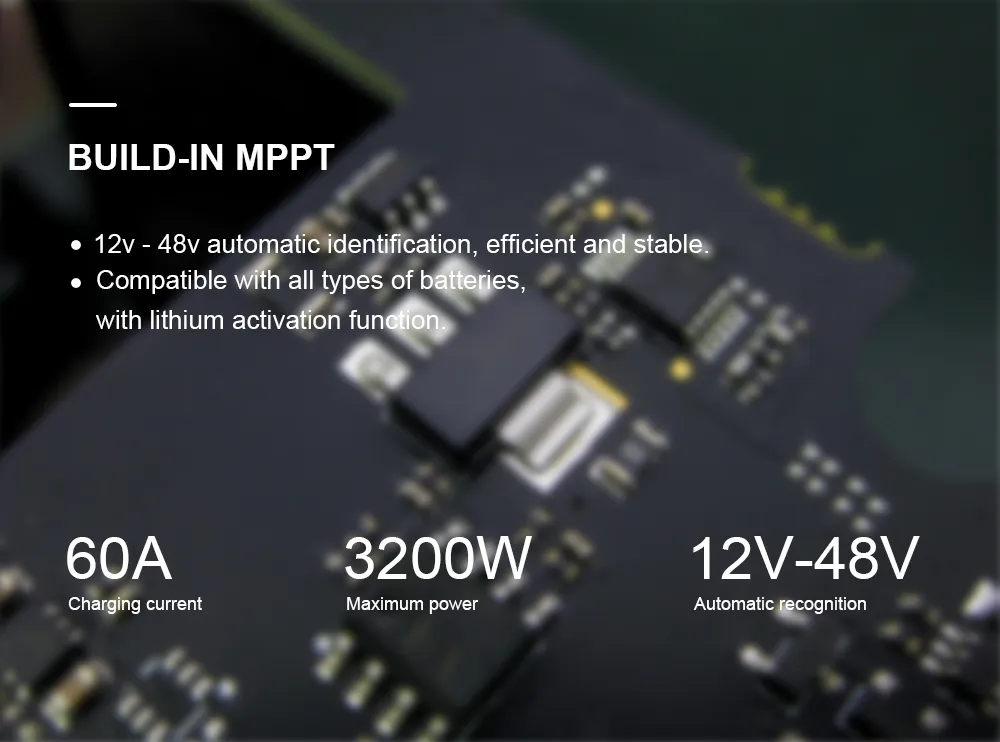

- Built-in MPPT control, maximum photovoltaic input 450V
- Built-in AC charger, the maximum charging current can reach 60A
- Support external WIFI module
- 2 years warranty
Detail
| MODEL | 8kw | 10KW | 12KW |
| Continuous Output Power (W) | 8000W | 10000W | 12000W |
| Rated input voltage | 48VDC | ||
| Mains mode specifications: | |||
| Input voltage waveform | Sine wave (mains or generator) | ||
| Rated input voltage | 100V/110V/120V/220V/230V/240Vac | ||
| Low voltage shutdown point | 92/184Vac±4% | ||
| Low pressure recovery point | 97/194Vac ±4% | ||
| High voltage shutdown point | 127/253Vac±4% | ||
| High pressure recovery point | 121/243Vac±4% | ||
| Maximum AC input voltage | 135/270V rms | ||
| Rated input frequency | 50Hz/ 60Hz (automatic detection) | ||
| Low voltage recovery point frequency | 40.5+0.3Hz ; | ||
| Low voltage cut-off point frequency | 40+0.3Hz; | ||
| High voltage recovery point frequency | 69.5+0.3Hz; | ||
| High voltage cut-off point frequency | 70+0.3Hz ; | ||
| Output voltage waveform | Consistent with the input voltage waveform | ||
| Overload protection | Circuit breaker start | ||
| Short circuit protection | Circuit breaker start | ||
| Power Efficiency | >95% | ||
| Conversion current | 30A | ||
| Conversion time (Ac to Dc) | 10ms | ||
| Bypass switching current | Yes | ||
| Bypass maximum load current | 30A | ||
| Output voltage waveform | Sine wave | ||
| Power factor | 0~1.0 | ||
| Rated output voltage (V) | 120/230Vac | ||
| Rated output frequency (Hz) | 60/50Hz ± 0.3Hz | ||
| Automatic tracking main frequency (Hz) | Yes (from the first connection) | ||
| Output voltage range | ±2% rms | ||
| efficient | >80% | ||
| Overload protection (SMPS load) | (110%<load<125%) ±10%: disconnect the output voltage after 15 minutes | ||
| (125%<load <150%) ±10%: disconnect the output voltage after 10 seconds | |||
| Load >150% ±10%: Disconnect the output voltage after 20 seconds | |||
| Peak capacity(10s) | 24000VA | 30000VA | 36000VA |
| start the motor | 8HP | 10HP | 12HP |
| Short circuit protection | Current limit (power off after 10s) | ||
| Circuit breaker size | 63A | ||
| Rated DC input voltage | 48VDC | ||
| Power saving | load ≦2W | ||
| Inverter dimensions(Length*width*height) | 698*415*200mm | ||
| Packing size (length*width*height) | 850*520*310mm | ||
| Inverter weight | 60+3 | 66+3 | 70+3 |
| Packing operating weight | 62+3 | 68+3 | 72+3 |
| Standard warranty | 2 year | ||
What can the IMHGC series products do for you
Energy storage system
Providing Emergency Backup Power: The peak-shaving and valley-filling mechanism can discharge stored energy during off-peak hours, offering emergency backup power to address unexpected events and safeguard the secure and stable operation of the power grid.
Enhancing the Utilization of Fluctuating Renewable Energies: Energy storage systems can harness renewable energies such as wind and solar to charge batteries during periods of low grid demand. Conversely, during peak demand, the stored chemical energy in the batteries is converted back into electrical energy for discharge. This process significantly improves the utilization rate of intermittent renewable energy sources, ensuring a more efficient integration with the power grid.
