8-12kw Low frequency solar inverter

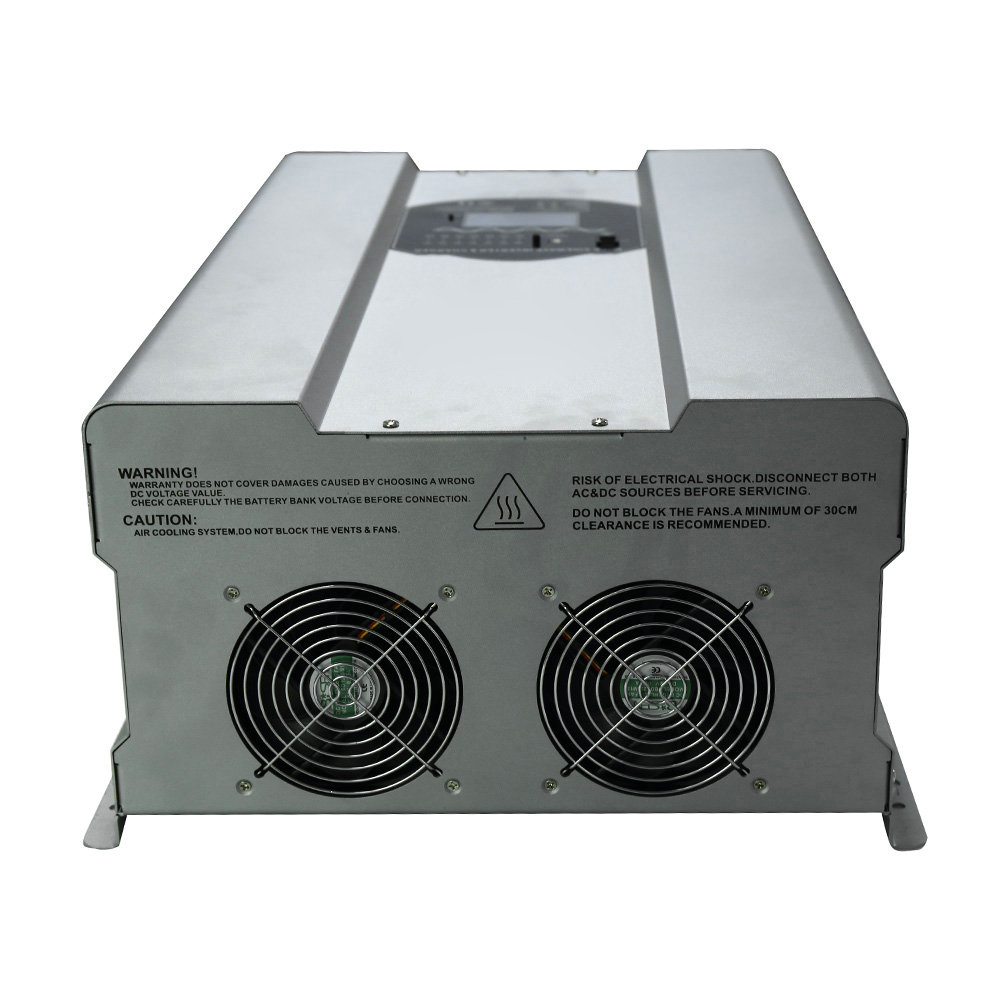

8kw 10kw 12kw ISGC series Low frequency solar inverter

ISGC series

Power frequency inverter control integrated machine, the maximum peak power is 3 times, optional single-phase 120V or 220V output, can choose split-phase 120V and 220V output. Ideal for home use on two circuits for power tools, computers, audio/video components, and other sensitive electronic equipment. This inverter has a hard shell and is not limited to home, commercial, industrial, marine and other scenarios.

  1. Sine wave output
  2. Split-phase output 120V/240V (optional)
  3. real power output
  4. Built-in AC charger, the maximum charging current can reach 60A
  5. Support external WIFI module
  6. 2 years warranty

Detail

Model(HC)8000W10000W12000W
Inverter OutputContinuous Output Power8000W10000W12000W
Surge Rating(20s)24000W30000W36000W
Cpable of Starting Electric Motor8HP10HP10HP
Output Waveformpure sine wave/same as input(Bypass mode)
Nominal Efficiency>88%(Peak)
Line Mode Efficiency>95%
Power Factor0.9-1.0
Nominal Output220-230-240Vac <10%
DC InputNominal Input Voltage48Vdc
Minimum Start Voltage
Idle Consumption-Search< 25 W when Power Saver On
ChargeInput Voltage RangeWide:164~243Vac;
Narraw:194~243Vac;
Output VoltageDepends on battery type
Max Charge Rate35A/70-90A Max (Charger Current Control)
Remote ControlYes.Optional
Bypass &ProtectionInput Voltage WaveformSine Wave(Grid or Generator)
Nominal Voltage230Vac
Low Voltage Trip184V/154V±4%
High Voltage Trip253V±4%
Max Input AC Voltage270VAC
Nominal Input Frequency50Hz or 60Hz(Auto detect)
Mechanical SpecificationMountingWall mount
Inverter Dimensions(L*W*H)698*415*200mm
Inverter Weight60+3
KG
66+3
KG
70+3KG
Shipping Dimensions(L*W*H)850*520*310mm
Shipping Weight62+3KG68+3KG72+3KG
Display(Optional)Status LEDs/Status LEDs+LCD

What can the ISGC series products do for you

Energy storage system

Providing Emergency Backup Power: The peak-shaving and valley-filling mechanism can discharge stored energy during off-peak hours, offering emergency backup power to address unexpected events and safeguard the secure and stable operation of the power grid.

Enhancing the Utilization of Fluctuating Renewable Energies: Energy storage systems can harness renewable energies such as wind and solar to charge batteries during periods of low grid demand. Conversely, during peak demand, the stored chemical energy in the batteries is converted back into electrical energy for discharge. This process significantly improves the utilization rate of intermittent renewable energy sources, ensuring a more efficient integration with the power grid.
