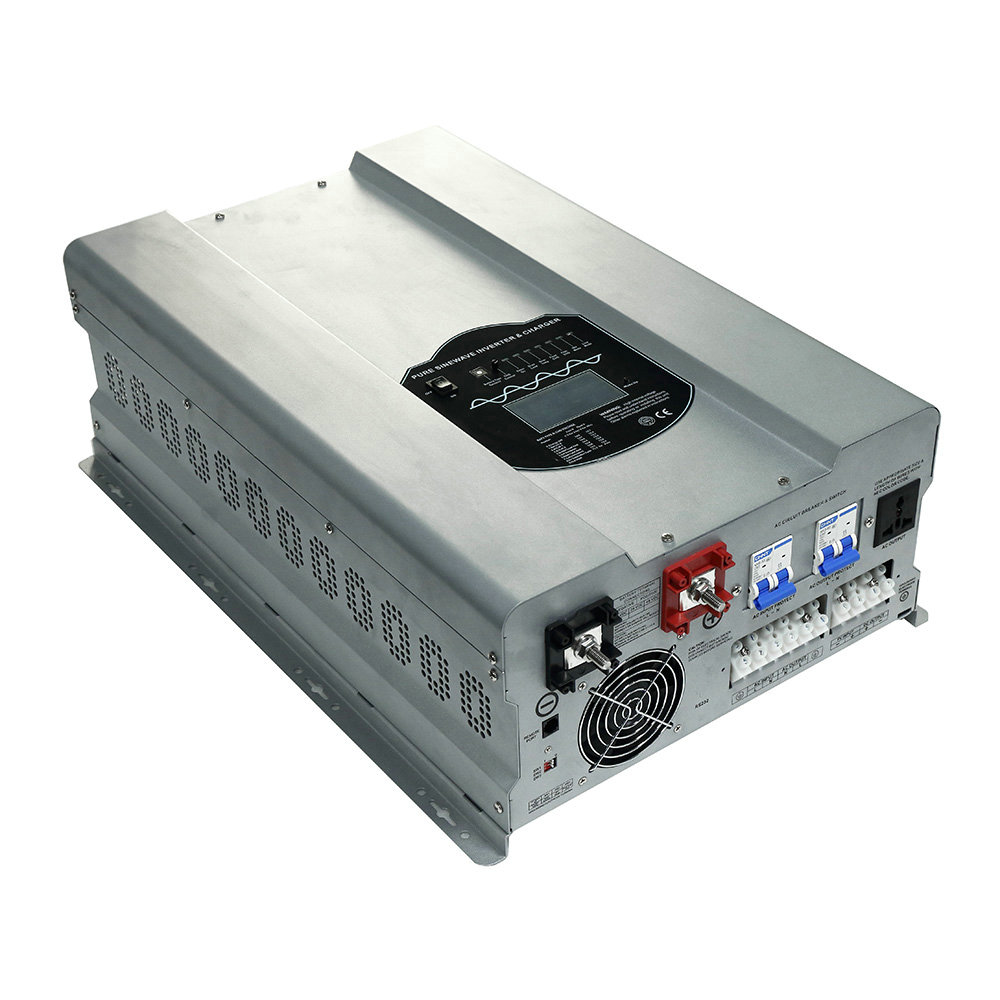

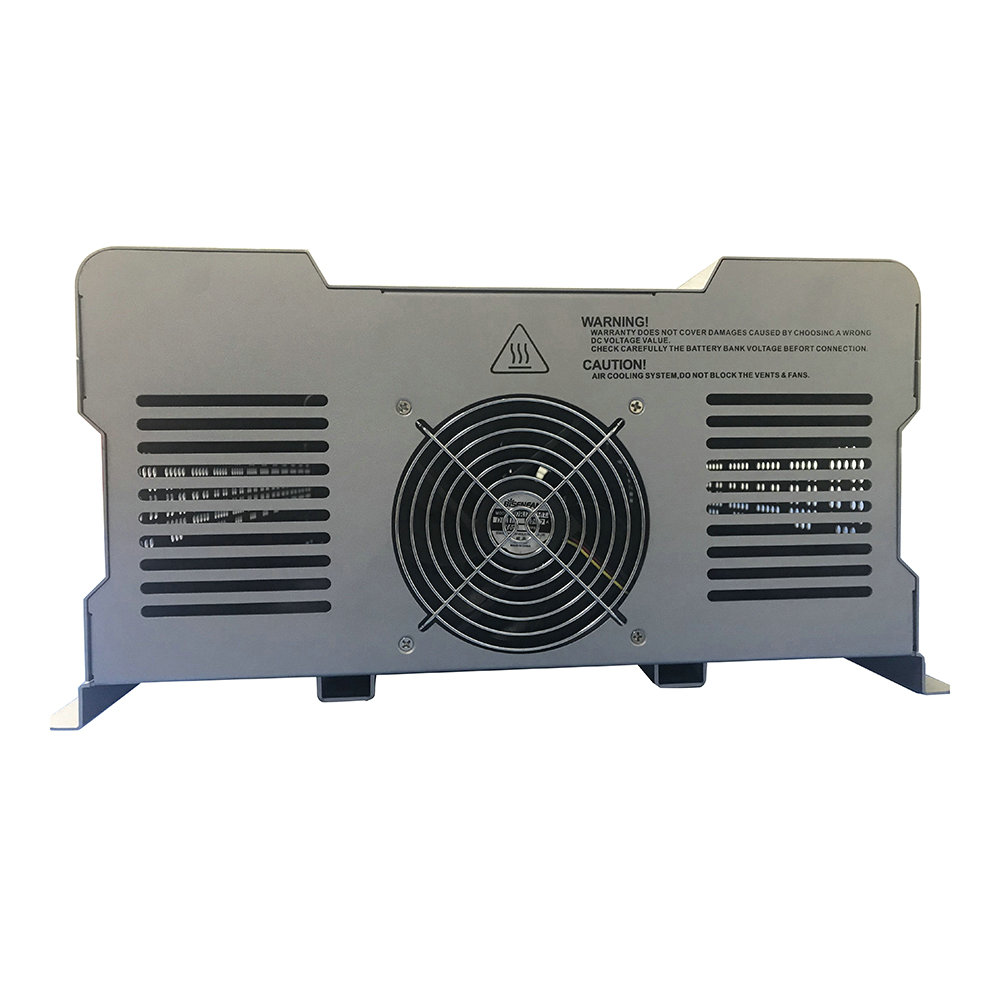

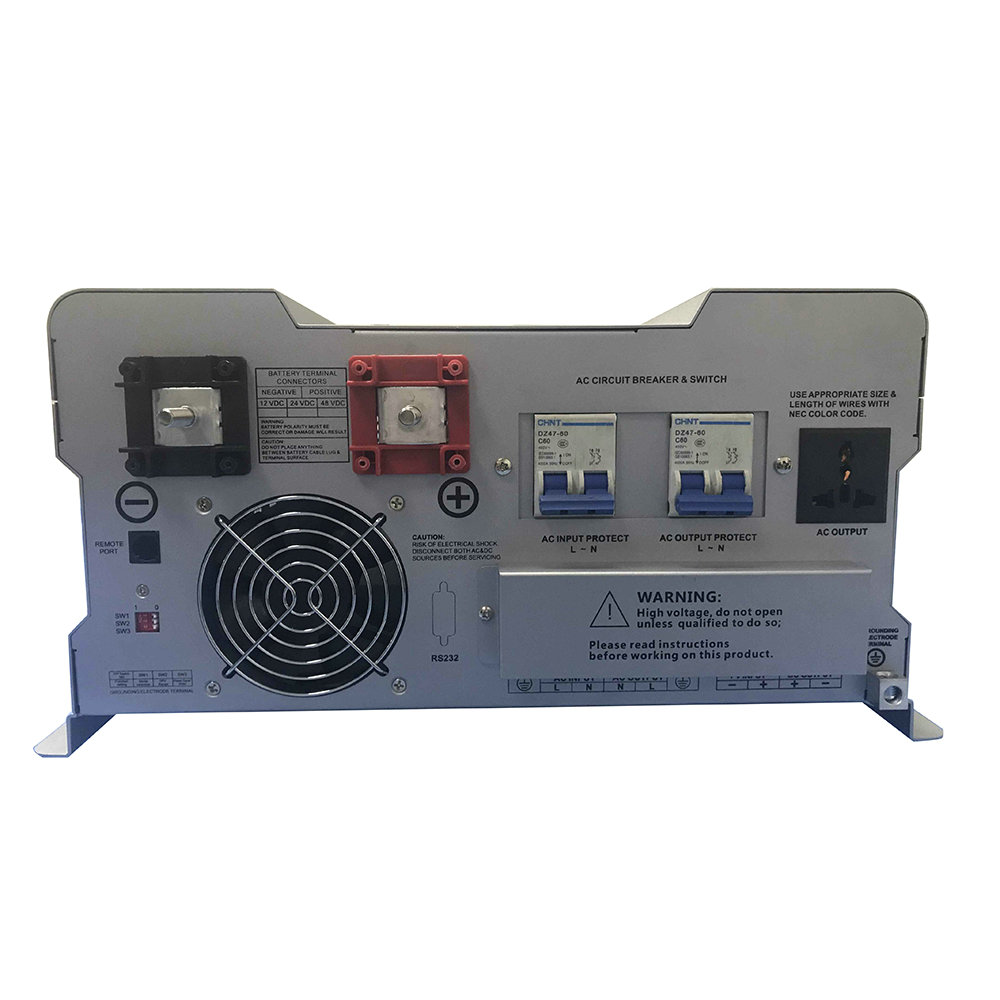

1kw 2kw 3kw IMHGC series Low frequency solar inverter with mppt
IMHGC series
Power frequency inverter control integrated machine, built-in MPPT controller, 3 times the maximum peak power, optional single-phase 120V or 220V output, can choose split-phase 120V and 220V output. Ideal for home use on two circuits for power tools, computers, audio/video components, and other sensitive electronic equipment. This inverter has a hard shell and is not limited to home, commercial, industrial, marine and other scenarios.
- Sine wave output
- Split-phase output 120V/240V (optional)
- real power output
- Built-in MPPT control, maximum photovoltaic input 450V
- Built-in AC charger, the maximum charging current can reach 60A
- Support external WIFI module
- 2 years warranty
Detail
| Model(HC) | 1000W | 1500W | 2000W | 3000W | |
| Inverter | Continuous Output Power | 1000W | 1500W | 2000W | 3000W |
| Output | Surge Rating(20s) | 3000W | 4500W | 6000W | 9000W |
| Cpable of Starting Electric Motor | 1HP | 1.5HP | 2HP | 3HP | |
| Output Waveform | pure sine wave/same as input(Bypass mode) | ||||
| Nominal Efficiency | >88%(Peak) | ||||
| Line Mode Efficiency | >95% | ||||
| Power Factor | 0.9-1.0 | ||||
| Nominal Output | 100-110-120Vac/220-230-240Vac | ||||
| <10% | |||||
| DC Input | Nominal Input Voltage | 12.0Vdc 24Vdc,48Vdc | |||
| Minimum Start Voltage | 10.0Vdc | ||||
| Idle Consumption-Search | < 25 W when Power Saver On | ||||
| Charge | Input Voltage Range | Wide:90~135Vac/164~243Vac; | |||
| Narraw:100-135Vac/194~243Vac; | |||||
| Output Voltage | Depends on battery type | ||||
| Max Charge Rate | 35A/70-90A Max (Charger Current Control) | ||||
| Remote Control | Yes.Optional | ||||
| Bypass & | Input Voltage Waveform | Sine Wave(Grid or Generator) | |||
| Protection | Nominal Voltage | 120Vac | |||
| Low Voltage Trip | 80V/90±4% | ||||
| High Voltage Trip | 140V±4% | ||||
| Max Input AC Voltage | 150VAC | ||||
| Nominal Input Frequency | 50Hz or 60Hz(Auto detect) | ||||
| Mechanical | Mounting | Wall mount | |||
| Specification | Inverter Dimensions(L*W*H) | 382*218*179mm | 442*218*179mm | ||
| Inverter Weight | 14KG | 16KG | 19KG | 24KG | |
| Shipping Dimensions(L*W*H) | 520*315*300mm | 580*315*300mm | |||
| Shipping Weight | 16KG | 18KG | 21KG | 26KG | |
| Display(Optional) | Status LEDs/Status LEDs+LCD | ||||
What can the IMHGC series products do for you
Energy storage system
Providing Emergency Backup Power: The peak-shaving and valley-filling mechanism can discharge stored energy during off-peak hours, offering emergency backup power to address unexpected events and safeguard the secure and stable operation of the power grid.
Enhancing the Utilization of Fluctuating Renewable Energies: Energy storage systems can harness renewable energies such as wind and solar to charge batteries during periods of low grid demand. Conversely, during peak demand, the stored chemical energy in the batteries is converted back into electrical energy for discharge. This process significantly improves the utilization rate of intermittent renewable energy sources, ensuring a more efficient integration with the power grid.
